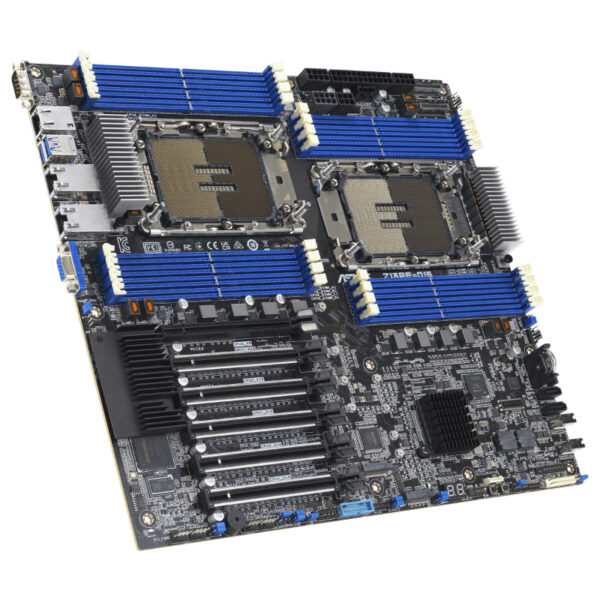

Placa Base Asus Server Z13Pe-D16/Asmb11

Intel® C741 Chipset. . Memory. Total Slots : 16 (8-channel per CPU, 8 DIMM per CPU). Capacity : Maximum up to 2TB per CPU socket. Memory Type :. 4th: 4800 MHz (1DPC). 5th: 5600/4800 MHz (1DPC). Memory Size :. 64GB, 32GB, 16GB RDIMM. 256GB, 128GB RDIMM 3DS. . * Refer to support page for more information . . Expansion Slots. Up to 6 slots. 5 x PCIe Gen5 x16 link. 1 x PCIe Gen5 x8 link . . Form Factor.  E-ATX (12 x13 , 304.8mmx330.2mm) . . Storage. Storage Controller :. 10 x SATA 6Gb/s ports (8 by 2 Slimline SASConnector). 2 x M.2 connector (1 up to 2280, 1 up to 22110) . . Networking. 2 x 10GbE LAN ports (RJ45, Intel X710-AT2). 1 x Mgmt Port . . Graphic.  Aspeed AST2600 64MB . . On Board I/O. 1 x TPM header. 3 x PSU Power Connector (1 x 24-pin ATX power connector + 2 x 8-pin ATX 12V power connector). 1 x USB3.2 Gen1 header. 1 x USB 2.0 header. 8 x Fan Header, 4pin. 1 x SMBus. 1 x Chassis Intruder. 2 x M.2 connector. 2 x MCIO connector . 2 x SATA connector. 2 x Slimline SAS connector. 1 x Onboard header for optional management card . . Back I/O Ports. 2 x USB3.2 Gen1 ports. 1 x Serial Port. 1 x VGA Port. 2 x 10GbE LAN ports (RJ45, Intel X710-AT2). 1 x Mgmt Port . . Management Solution. ASUS Control Center (in-band). ASMB11-iKVM (out-of-band/BMC AST2600) . . Weight. Gift Box (1-in-1). Net Weight :  1.75KG. Gross Weight : 2.75KG. Bulk Pack (10-in-1). Net Weight :  17.5KG. Gross Weight :  20KG . . Environment. Operation temperature: 10 ~ 35 . Non operation temperature: -40 ~ 70 . Non operation humidity: 20% ~ 90% (Non condensing)
