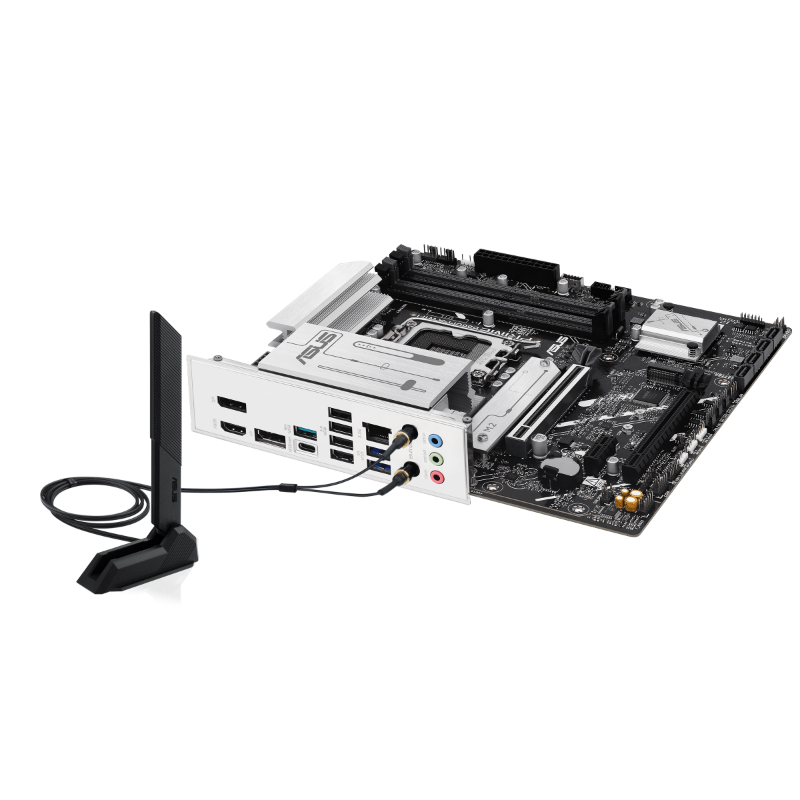

Placa Base Prime B860M-A Wifi Asus

202€

Intel LGA1851/ DDR5/ Intel B860/ HDMI, 2xDisplayPort/ MicroATX/ WiFi 6E, Bluetooth 5.3

SKU: 4711387806289 Categorías: Componentes, Placas Base Marca: ASUS

Hay existencias

Entrega 28. abril - 29. abril



Transferencia



Tarjeta

Comprados juntos habitualmente:

Placa Base Prime B860M-A Wifi Asus

Este producto Placa Base Prime B860M-A Wifi Asus

Hay existencias

~~223€~~ 202€

Disco Duro 2.5 Ssd 2Tb Sata3 Samsung 870 Qvo

1 × Disco Duro 2.5 Ssd 2Tb Sata3 Samsung 870 Qvo

Hay existencias

179€

Hay existencias

Entrega 28. abril - 29. abril

CPU. . Support Intel® Core Ultra Processors (Series 2) , LGA1851*. Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0. *Refer to https://www.asus.com/support/download-center/ for CPU support list.. **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.. . Chipset. . Intel® B860 Chipset. . Memory. . 4 x DIMM slots, max. 256GB, DDR5. Supports up to 8666+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*. Dual channel memory architecture. DIMM Fit. Supports Intel® Extreme Memory Profile (XMP) memory module. ASUS Enhanced Memory Profile III(AEMPIII). *Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.. * Adjustments will be made based on the specifications of mass-produced memory products available on the market.. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.. . Graphics. . 2 x DisplayPort**. 1 x HDMI port***. * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.. *** Supports 4K@60Hz as specified in HDMI 2.1.. ***** VGA resolution support depends on processors’ or graphic cards’ resolution.. ******While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.. . Expansion Slots. . Intel® Core Ultra Processors(series 2)*. 1 x PCIe 5.0 x16 slot. Intel® B860 Chipset**. 1 x PCIe 4.0 x16 slot (supports x4 mode). 1 x PCIe 4.0 x1 slot. – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.. . Storage. . Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*. Intel® Core Ultra Processors (Series 2) *. M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode). Intel®B860 Chipset. M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes). 4 x SATA 6Gb/s ports. * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.. . Ethernet. . 1 x Realtek 2.5Gb Ethernet. ASUS LANGuard.

.

Wireless & Bluetooth. . . .

.

Wi-Fi 6E. 2×2 Wi-Fi 6E (802.11ax). Supports 2.4/5/6GHz frequency band*. Bluetooth® v5.3**. * WiFi 6E 6GHz regulatory may vary between countries, supported only in Windows 11 or later. ** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.. . . . . . USB. . Rear USB (Total 8 ports). 1 x USB 20Gbps port (1 x USB Type-C®). 1 x USB 10Gbps port (1 x Type-A ). 2 x USB 5Gbps ports (2 x Type-A). 4 x USB 2.0 ports (4 x Type-A)**. Front USB (Total 5 ports). 1 x USB 10Gbps connector (supports USB Type-C® ). 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports. 1 x USB 2.0 header supports 2 additional USB 2.0 ports. *USB Type-C® power delivery output: max. 5V/3A. **USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.. . Audio. . Realtek 7.1 Surround Sound High Definition Audio CODEC*. – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking. – Supports up to 24-Bit/192 kHz playback. Audio Features. – Audio Shielding. – Premium audio capacitors. – Dedicated audio PCB layers. * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.. . Back Panel I/O Ports. . 1 x USB 20Gbps port (1 x USB Type-C®). 1 x USB 10Gbps port (1 x Type-A). 2 x USB 5Gbps ports (2 x Type-A). 4 x USB 2.0 ports (4 x Type-A ). 2 x DisplayPort. 1 x HDMI port. 1 x Realtek 2.5Gb Ethernet port. 3 x Audio jacks. . Internal I/O Connectors. . Fan and Cooling Related. 1 x 4-pin CPU Fan header. 1 x 4-pin CPU OPT Fan header. 1 x 4-pin AIO Pump header. 3 x 4-pin Chassis Fan headers. Power Related. 1 x 24-pin Main Power connector. 1 x 8-pin +12V CPU Power connector. Storage Related. 2 x M.2 slots (Key M). 4 x SATA 6Gb/s ports. USB. 1 x USB 10Gbps connector (supports USB Type-C® ). 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports. 1 x USB 2.0 header supports 2 additionalUSB 2.0 ports. Miscellaneous. 3 x Addressable Gen 2 headers. 1 x Aura RGB header. 1 x Clear CMOS header. 1 x Chassis Intrusion header. 1 x COM Port header. 1 x Front Panel Audio header (F_AUDIO). 1 x S/PDIF Out header. 1 x SPI TPM header (14-1 pin). 1 x 10-1 pin Front System Panel header. 1 x Thunderbolt (USB4®) header. . BIOS. . 256 (128+128) Mb Flash ROM, UEFI AMI BIOS. . Manageability. . WOL by PME, PXE. . Form Factor. . micro-ATX Form Factor. 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)

Ficha Técnica

Chipset: Intel B860
Formato: Micro ATX
Hdmi: Si
Imagen Salida: Graficos en CPU, HDMI, 2xDisplayport
Memoria Maxima: 256GB
Microprocesador Integrado: No
Multi-Grafica: No
N Bancos De Memoria: 4
N Conexiones SATA: 4
N USB 2.0: 4 Traseros, 2 Internos
N USB 3.2 Gen1: 2 Traseros, 2 Internos
N USB 3.2 Gen2: 1 Trasero, 1 Tipo C Interno
N USB 4.0: 1 Trasero
Raid: Si
SATA 6Gb/S: 4
Socket: Intel LGA 1851
Tecnologia De Memoria: DDR5
Tipo De Raid: 0,1,5,10
USB 3.0: Si
USB3.1 Interno: Si
