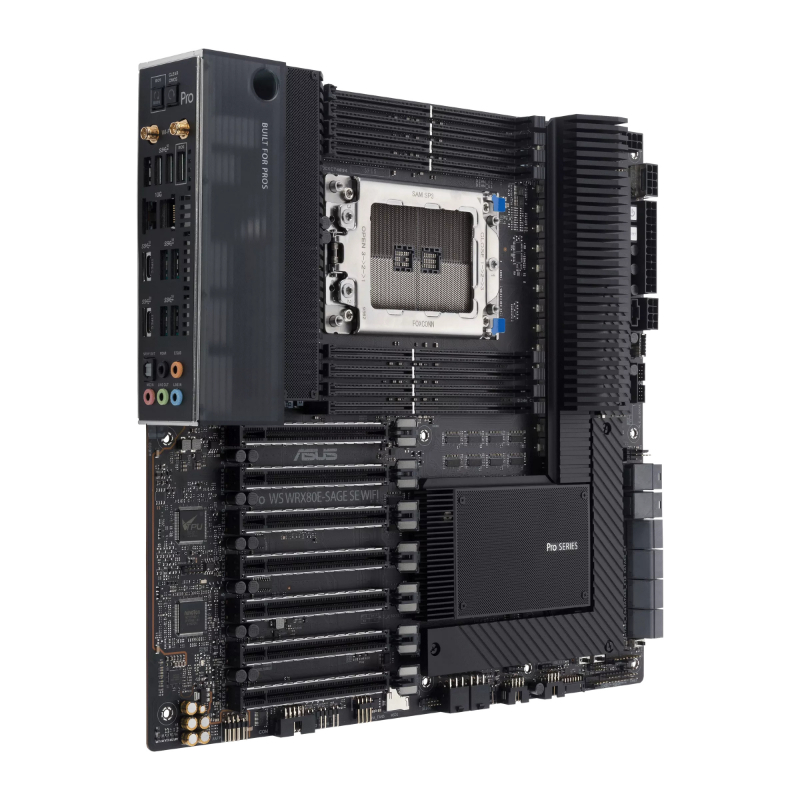

Placa Base Pro Ws Wrx80E-Sage Se Wifi Asus

Model. Pro WS WRX80E-SAGE SE WIFI. . News & Updates. Socket sWRX8. . CPU. AMD Socket sWRX8 for AMD Ryzen™ Threadripper™ PRO Series Processors*. * Refer to www.asus.com for CPU support list.. . Chipset. AMD WRX80 Chipset. . Memory. 8 x DIMM, Max. 2048GB, DDR4 3200/3000/2933/2800/2666/2400/2133 MHz ECC and Non-ECC, buffered and Un-buffered, U-DIMM, R-DIMM, 3DS R-DIMM and LR-DIMM Memory*. 8 Channel Memory Architecture. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).. . Expansion Slots. AMD Ryzen™ Threadripper™ PRO Series Processors. 7 x PCIe 4.0/3.0 x16 slot(s)*. * Support PCIe bandwidth bifurcation for RAID on CPU function.. . Multi-GPU Support. Supports NVIDIA 4-Way/3-Way/2-Way SLI® Technology. . Storage. Total supports 3 x M.2 slots and 8 x SATA 6Gb/s ports. AMD Ryzen™ Threadripper™ PRO Series Processors. M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes). M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes). U.2_1 slot supports U.2 NVMe device and up to 4 SATA devices*. AMD WRX80 Chipset. M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes). U.2_2 slot supports U.2 NVMe device and up to 4 SATA devices*. 4 x SATA 6Gb/s ports. ASMedia ASM1061 Controller. 4 x SATA 6Gb/s ports. . Supports NVMe RAID configurations via M.2 storages. *The U.2_1 slot shares bandwidth with M.2_2, U.2_2 slot shares bandwidth with M.2_3. When M.2_2 slot is being populated, U.2_1 slot will be disabled. When M.2_3 slot is being populated, U.2_2 slot will be disabled. Each U.2 slots can support up to 4 SATA devices via a transfer cable. the cable is purchased separately.. . Ethernet. 1 x Intel® X550-AT2 dual 10Gb Ethernet. . Wireless & Bluetooth. Wi-Fi 6. 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax). Supports 2.4/5GHz frequency band. Bluetooth® v5.2. . USB. Rear USB (Total 10 ports). 1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C®). 9 x USB 3.2 Gen 2 port(s) (8 x Type-A + 1 x USB Type-C®). . Front USB (Total 7 ports). 1 x USB 3.2 Gen 2 connector(s) (suppport(s) USB Type-C®). 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports. 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports. . Audio. Realtek ALC4080 7.1 Surround Sound High Definition Audio CODEC. – Impedance sense for front and rear headphone outputs. – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking. – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input. – Supports up to 32-Bit/384 kHz playback. . Back Panel I/O Ports. 1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C®). 9 x USB 3.2 Gen 2 port(s) (8 x Type-A+ 1 x USB Type-C®). 1 x Wi-Fi Module. 2 x Intel® X550-AT2 dual 10Gb Ethernet ports. 5 x Audio jacks. 1 x Optical S/PDIF out port. 1 x BIOS FlashBack™ button. 1 x Clear CMOS button. . Internal I/O Connectors. Fan and Cooling related. 1 x 4-pin CPU Fan header(s). 1 x 4-pin CPU OPT Fan header(s). 6 x 4-pin Chassis Fan header(s). 1 x VRM heatsink Fan header. 1 x Chipset Fan header. Power related. 1 x 24-pin Main Power connector. 2 x 8-pin +12V Power connector. 2 x 6-pin PCIe Graphics Card connector. 1 x 8-pin PCIe Power connector. Storage related. 3 x M.2 slots (Key M). 8 x SATA 6Gb/s ports. 2 x U.2 slots. USB. 1 x USB 3.2 Gen 2 connector (support(s) USB Type-C®). 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports. 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports. BMC Related. 1 x BMC switch. 1 x IPMI switch. 1 x Messange LED header. 1 x Micro SD card socket. 2 x LAN LED header(s). 1 x Location LED header. 1 x Location button header. 1 x PSU_SMB header. 1 x SMART_PSU switch. 1 x VGA switch. 1 x VGA header. 1 x VPP_I2C header. Miscellaneous. 1 x COM Port header. 1 x FlexKey button. 1 x Front Panel Audio header (AAFP). 1 x SPI TPM header (14-1pin). 1 x Start button. 1 x 20-3 pin System Panel header with Chassis intrude function. 1 x RTC Battery header. 1 x Thermal Sensor header. . Special Features. ASUS Q-Design. – Q-Code. – Q-Connector. – Q-DIMM. – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]). – Q-Slot. ASUS Thermal Solution. – M.2 heatsink. ASUS EZ DIY. – BIOS FlashBack™ button. – BIOS FlashBack™ LED. – Clear CMOS button. – ProCool II. – Pre-mounted I/O shield. – SafeSlot. Bespoke Motherboard Design & Business Focused Features. – Event Log in ASMB9-iKVM. – 24/7 Reliability. – Overcurrent Protection. ASMB9-iKVM for KVM-over-Internet. . Software Features. ASUS Exclusive Software. Armoury Crate. ASUS CPU-Z. AI Charger. ASUS Turbo LAN. DAEMON Tools. DTS:X® Ultra. Norton Anti-virus software (Free Trial version). WinRAR. UEFI BIOS. ASUS EZ DIY. – ASUS CrashFree BIOS 3. – ASUS EZ Flash 3. – ASUS UEFI BIOS EZ Mode. . BIOS. 256 Mb Flash ROM, UEFI AMI BIOS. . Manageability. WOL by PME, PXE. . Accessories. Cables. 6 x SATA 6Gb/s cables. 1 x VGA cable. Miscellaneous. 1 x ASUS 2×2 Dual-Band Wi-Fi moving antennas. 1 x Hyper M.2 X16 Gen 4 Card. 4 x M.2 Rubber Package(s). 6 x M.2 SSD screw package(s). 1 x Q-connector. Installation Media. 1 x Support DVD. Documentation. 1 x User manual. . Operating System. Windows® 10 64-bit. . Form Factor. EATX(EEB) Form Factor. 12.2 inch x 13 inch ( 30.98 cm x 33.02 cm )
